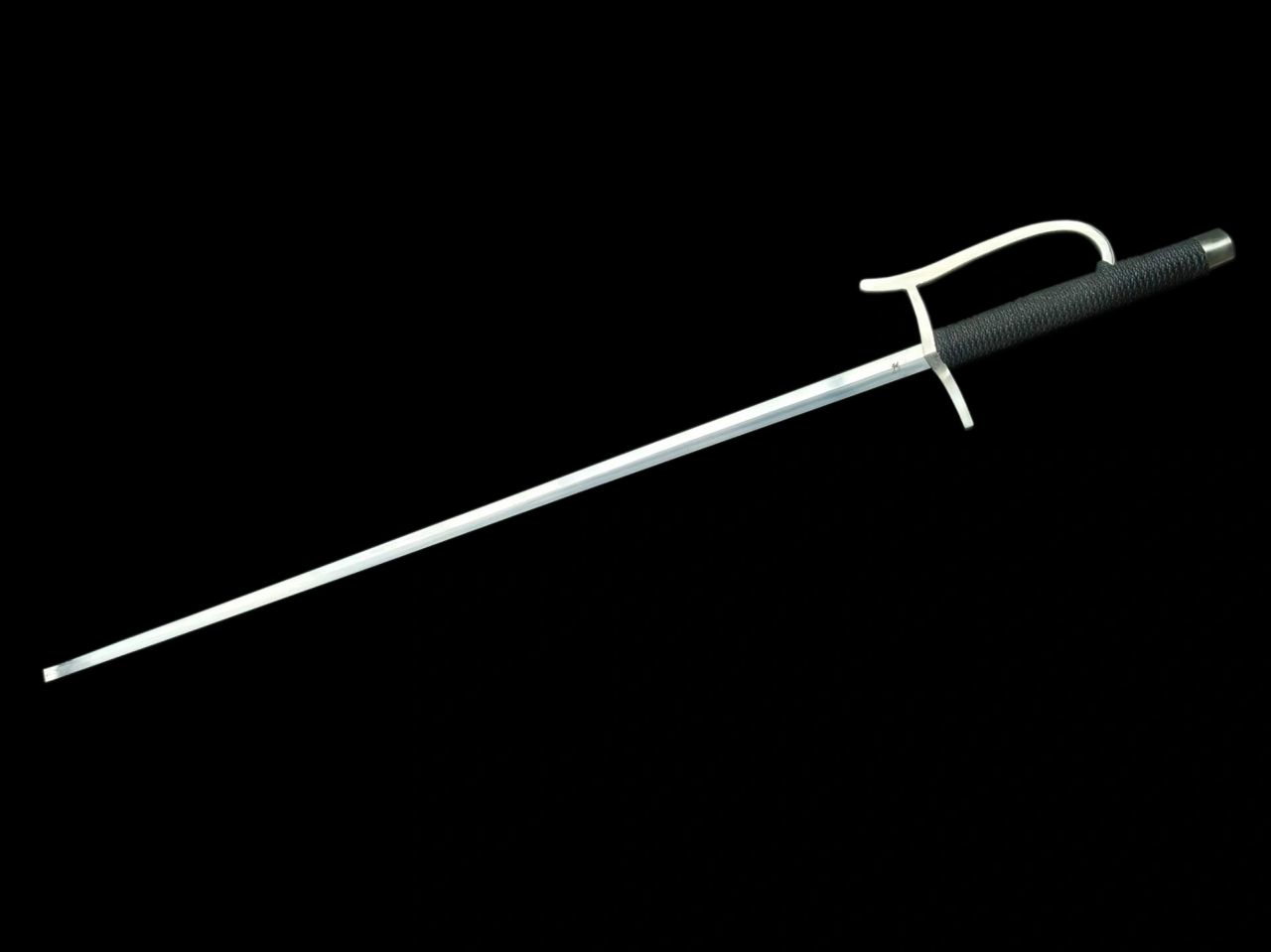

Sparring D Guard Han Jian
Historic weapon recreated with careful attention to original dimensions, balance, and handling.
HISTORIC RECONSTRUCTION
Built around
the original.
Historic weapon recreated with careful attention to original dimensions, balance, and handling.
- Collection
- Training & Protection
- Ordering
- Made to order / inquire
- Source
- LK Chen original archive
SOURCE SPECIFICATION EXTRACT
Documented details

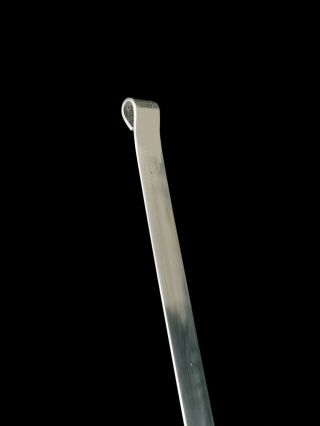

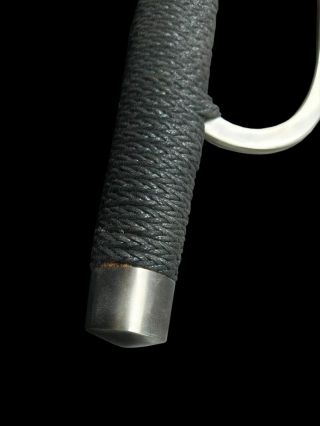

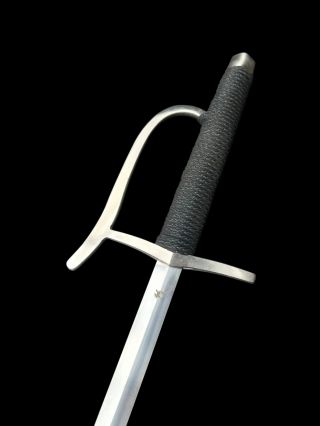

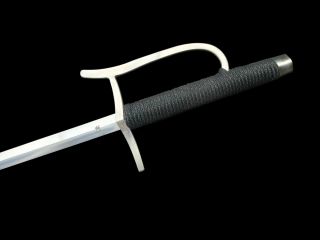

Blade Length: 95 cm (37.4") Grip Length: 17 cm (6.7") End Cap: 3 cm (1.1") Blade width 23mm-12mm Blade Thickness 6.5-7 mm Weight: 866 gram (1 lb. 6.67 oz) POB 8.5 cm (3.34") Full Tang Protective Roll Tip Material Steel GB 60Si2MnA High Carbon Manganese Spring Steel (Compare to AISI/SAE 5160 spring steel) Element % 60Si2MnA AISI/SAE 5160 Carbon 0.56-0.64 0.56-0.61 Silicon 1.60-2.00 0.15-0.35 Manganese 0.60-0.90 0.75-1.00 Phosphorus <=0.030 <=0.035 Sulfur <=0.030 <=0.040 Chromium <=0.35 0.70-0.90 Nickel <=0.35 <=0.25 Hand Guards: Stainless Steel Grip: Braided Wax Cotton Cord Order Sparring D-Guard Han Jian SPar
Read the full original specification and research page ↗CUSTOM ORDER
Interested in the Sparring D Guard Han Jian?
Contact us for availability, current price, customization, lead time, and international shipping.
