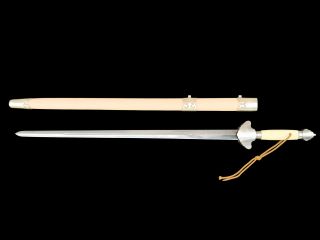

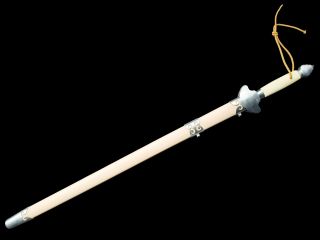

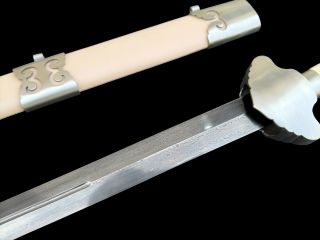

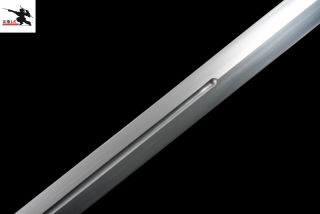

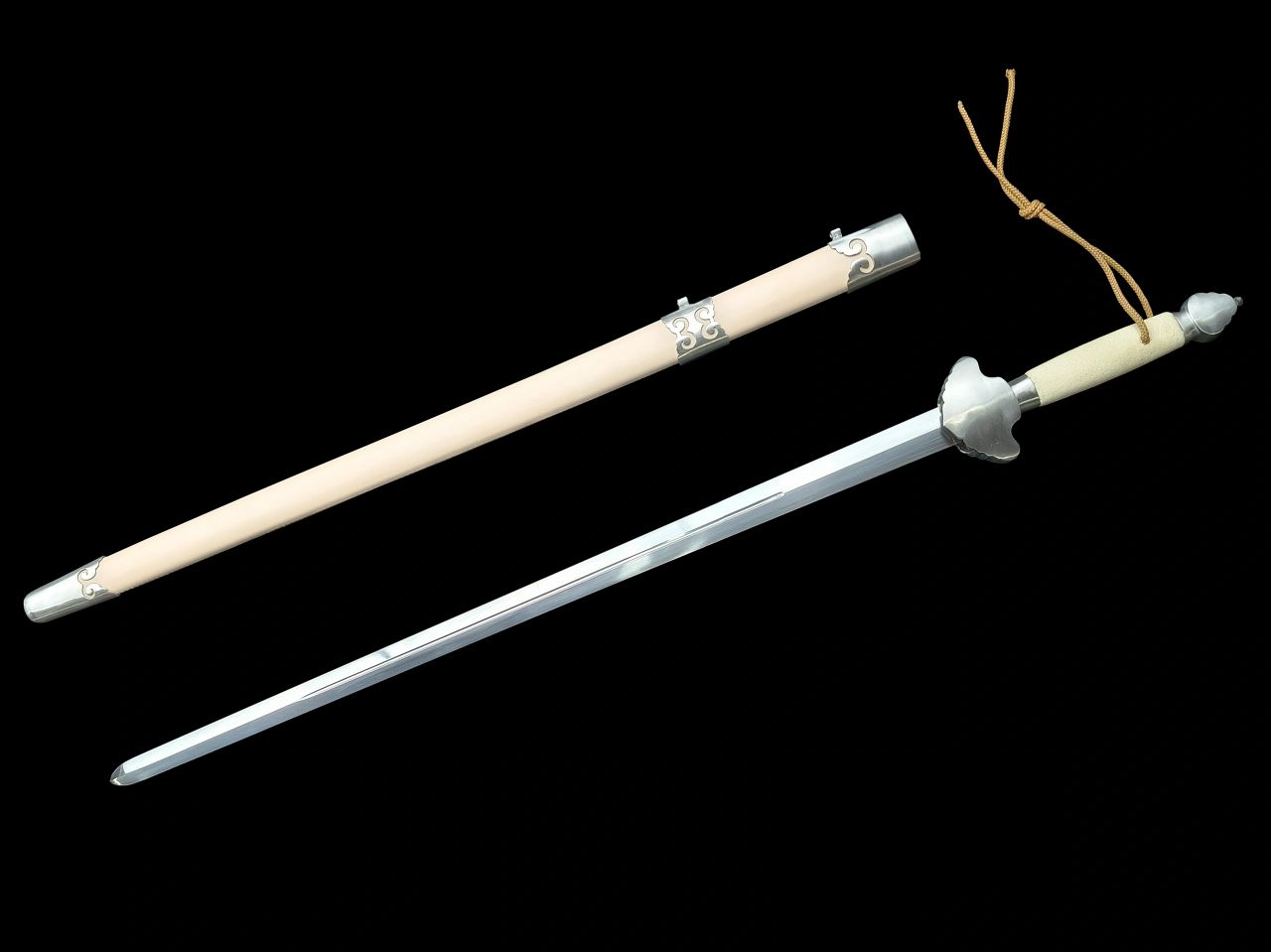

Snow Peak

SOURCE SPECIFICATION EXTRACT

Documented details

Specification Approximations only, each swords is unique and varies Blade only weight:  600 g (1 lb. 5.1 oz) Sword only weight:  approx. 1038 g (2 lb. 4.6 oz) Blade length: 80 cm (31.5") Handle total length: 20 cm (8.0")   Hangle grip length:  12.7 cm (5.0") Total length: 100 cm (39.37") Gentle tapering Width At hand guard: 35 mm,   At mid point: 28.66 At tip: 20 mm    Thickness:  At hand guard: 6.58 mm At mid-point: 4.17 At tip: 3.22 mm POB:  approx. 10 cm (3.9") from hand guard POP:  approx. 20 cm (8.0") from tip Blade Profile: diamond 4 surfaces A 44.2 cm (17.4") fuller in the middle of the soldier. Steel option 1 Folded pattern steel:  1065 carbon steel + T9 tungsten-vanadium high-speed tool steel.  1065 carbon steel Element %  Carbon            0.55-0.660     Manganese     0.60-0.90            Phosphorus     <=0.040          Sulfur               <=0.050  T9 tungsten-vanadium high-speed tool steel. Element %                       C
