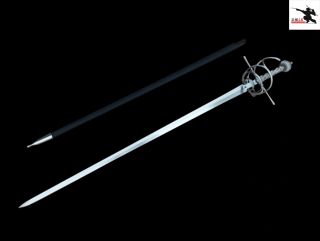

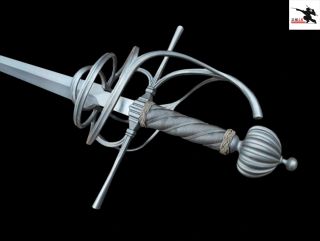

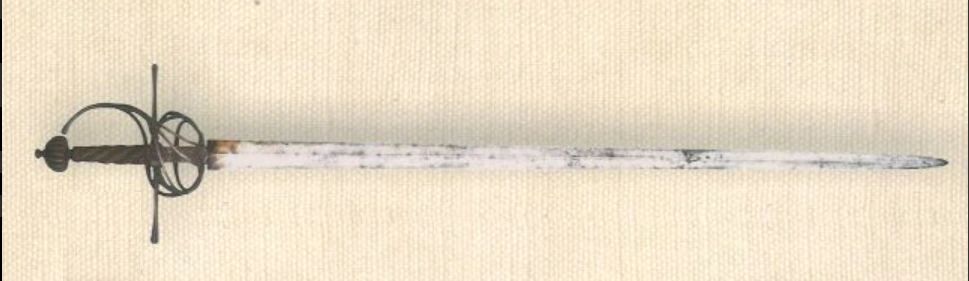

Saxony German Rapier

SOURCE SPECIFICATION EXTRACT

Documented details

Specification Approximations only, all measurements subject to slight variation for each swords Minor adjustment can be made for the first production run Total length: 117.6 cm (46.29") Blade length from cross bar: 102 cm (40") Hilt length (handle & pommel: 15 cm (5.9") Handle length: 10 cm (3.9") Cross-guide width: 13.5 cm (5.3") Total Weight: 1384 grams (3 lb. 0.8 oz) Point of Balance (from tip of hilt basket): 7 cm (2.75") Point of Balance (from cross bar ): 11 cm (4..33") Blade width: At hand guard: 35 m At 5 mm from tip: 17 mm  Blade thickness: At hand guard: 7 mm Near tip: 2.1 mm Blade Profile Diamond Shape with Hollow Ground Steel  GB 60Si2MnA    High Carbon Manganese Spring Steel (Compare to AISI/SAE 5160 spring steel)   Element %       60Si2MnA    AISI/SAE 5160    Carbon            0.56-0.64      0.56-0.61   Silicon              1.60-2.00       0.15-0.35   Manganese     0.60-0.90      0.75-1.00   Phosphorus     <=0.030        <=0.035   Sulfur
