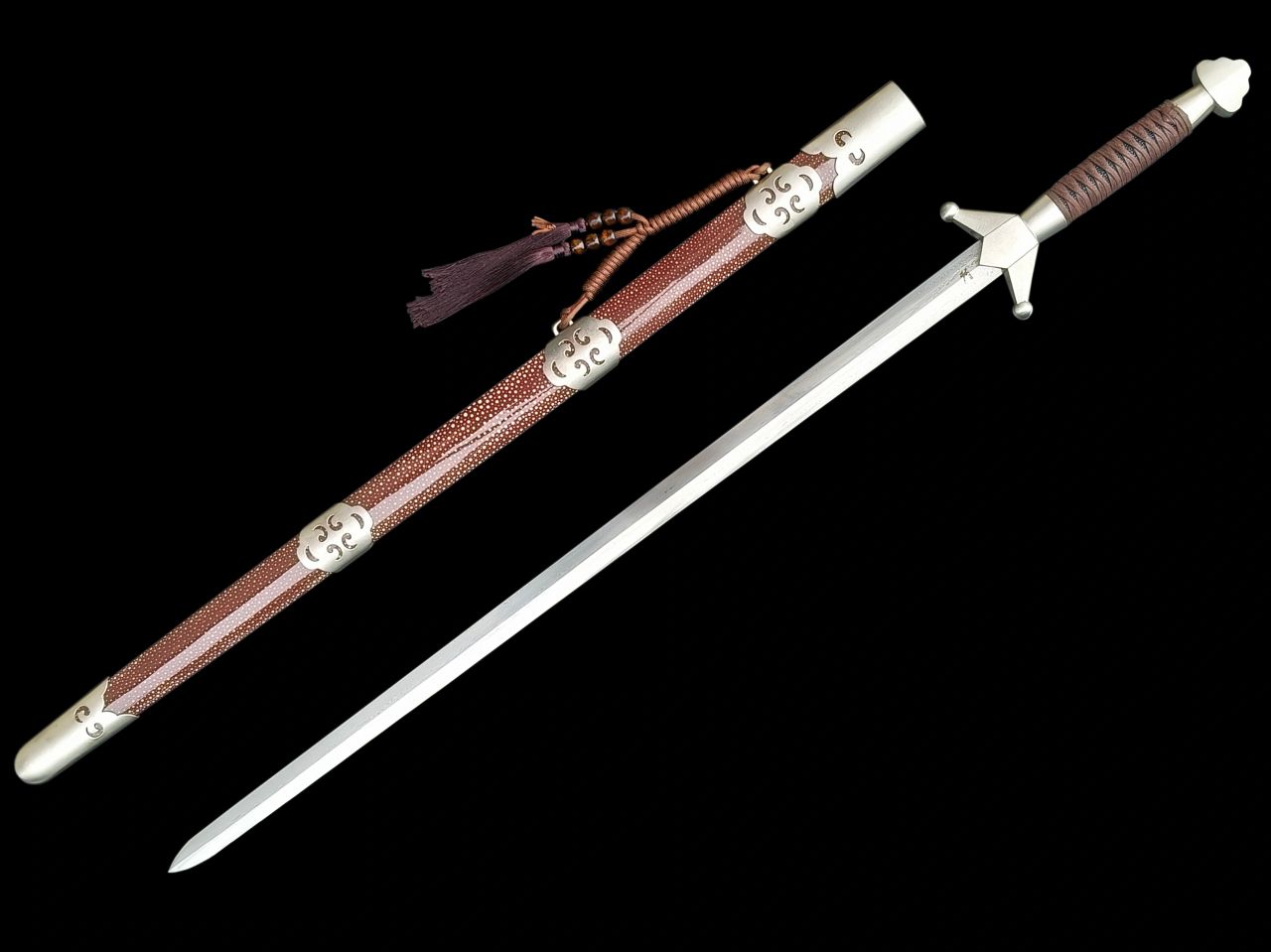

Immortal Wudang Jian Compact Edition

SOURCE SPECIFICATION EXTRACT

Documented details

Blade length: 76 cm (30") Hilt plus hand guard length: 16 cm (6.30") Total length: 92 cm (36.3") Width at hand guard: 29.5 mm,   Width at tip: 20 mm    Thickness at hand guard:: 6.3 mm  Thickness at the tip: 2.3 mm   Blade Profile: diamond 4 surfaces Gentle tapering Sword only weight:  759 g (1 lb. 10.5 oz) POB:  approx. 10 cm (3.94")  from the base of the hand guard Steel Folded pattern steel:  1065 carbon steel + T9 tungsten-vanadium high-speed tool steel. 1065 carbon steel Element %  Carbon            0.55-0.660     Manganese     0.60-0.90            Phosphorus     <=0.040          Sulfur               <=0.050  T9 tungsten-vanadium high-speed tool steel. Element %                       Carbon            0.85-0.94 Silicon              <=0.35            Manganese   &nbs
